Steps to Configure Golden Gate in a Single Database
Preinstallation steps for GGSCI performed on Oracle Database
- Verify the your Oracle Database in archive log mode
-- Verify that its enabled or disabled
archive log list;
-- Enable archive mode of database
shutdown immediate;
starup mount;
alter database archivelog;
alter database open;2. Enable the supplemental logging in Oracle database
ALTER database add supplemental log data;
alter database add supplemental log data (ALL) columns;
ALTER system switch logfile;
-- Verify the supplemental logging enabled
select minimal,primary_Key,unique_key,foreign_key,all_column,procedural from dba_supplemental_logging;3. Create a tablespace for gguser used for golden gate
create tablespace gg_tablespace datafile '/u01/app/oracle/oradata/pdb1/gg_files01.dbf'4. Add gguser and grant permission to user.
-- Create user
Create user gguser identified by password default tablespace gg_tablespace temporary tablespace temp;
-- Permission
Grant UNLIMITED TABLESPACE to gguser;
GRANT CONNECT, RESOURCE TO gguser;
GRANT CREATE SESSION TO gguser;
GRANT ALTER SESSION TO gguser;
GRANT SELECT ANY DICTIONARY TO gguser;
GRANT FLASHBACK ANY TABLE TO gguser;
GRANT SELECT ANY TABLE TO gguser;
GRANT INSERT ANY TABLE TO gguser;
GRANT UPDATE ANY TABLE TO gguser;
GRANT DELETE ANY TABLE TO gguser;
GRANT EXECUTE ON DBMS_FLASHBACK TO gguser;
-- For integrated process capture (we are not using currently)
exec dbms_goldengate_auth.grant_admin_privilege('GGUSER');
grant insert on system.logmnr_restart_ckpt$ to gguser;
grant update on sys.stream$_capture_process to gguser;
5. Install or setup the golden gate. Follow the link: Golden Gate setup on Linux
6.After setup, we need to check the manager process is running with INFO ALL command.
[oracle@localhost gg]$ ./ggsci
Oracle GoldenGate Command Interpreter for Oracle
Version 21.3.0.0.0 OGGCORE_21.3.0.0.0_PLATFORMS_210728.1047_FBO
Oracle Linux 7, x64, 64bit (optimized), Oracle Database 21c and lower supported versions on Jul 29 2021 03:59:23
Operating system character set identified as UTF-8.
Copyright (C) 1995, 2021, Oracle and/or its affiliates. All rights reserved.
GGSCI (localhost.localdomain) 1> info all
Program Status Group Lag at Chkpt Time Since Chkpt
MANAGER RUNNING 7. Suppose we have hr and scott schema in the database with emp table in it.
SQL> conn hr@pdb1
Enter password:
Connected.
SQL> create table emp (id number,name varchar(100), salary number);
Table created.8. Create a Integrated extract process on the golden gate and start for emp table
Note: No, Classic Extract is not supported in Oracle GoldenGate 21c. It has been deprecated since version 18c and completely desupported in 21c and beyond.

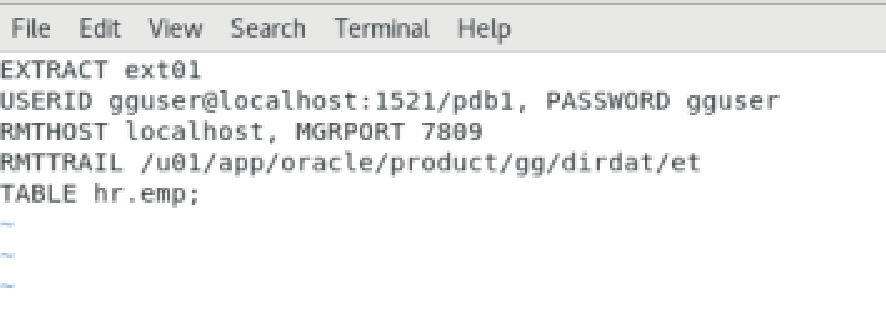

edit param ext01
extract ext01
userid gguser@pdb1,password gguser
rmthost localhost,mgrport 7809
rmtrail /u01/app/oracle/product/gg/dirdat/ext01/et
table hr.emp;
9. Start the integrated extract process.
GGSCI (localhost.localdomain as gguser@orcl) 9> start extract ext01
Error: Extract group EXT01 does not exist.
GGSCI (localhost.localdomain as gguser@orcl) 10> dblogin userid gguser@pdb1,password gguser
Successfully logged into database.
GGSCI (localhost.localdomain as gguser@orcl) 14> add extract ext01 tranlog,begin now
Integrated Extract added.
GGSCI (localhost.localdomain as gguser@orcl) 22> ADD RMTTRAIL /u01/app/oracle/product/gg/dirdat/ext01/et, EXTRACT ext01, MEGABYTES 100
RMTTRAIL added.
GGSCI (localhost.localdomain as gguser@orcl) 15> info all
Program Status Group Lag at Chkpt Time Since Chkpt
MANAGER RUNNING
EXTRACT STOPPED EXT01 00:00:00 00:00:24
2025-07-26 21:56:32 ERROR OGG-02022 Logmining server does not exist on this
Oracle database.
GGSCI (localhost.localdomain as gguser@orcl) 45> REGISTER EXTRACT ext01 DATABASE
2025-07-26 22:12:25 INFO OGG-02003 Extract group EXT01 successfully registered with database at SCN 6034876.
GGSCI (localhost.localdomain) 2> start extract ext01
Sending START request to Manager ...
Extract group EXT01 starting.
GGSCI (localhost.localdomain as gguser@orcl) 67> info all
Program Status Group Lag at Chkpt Time Since Chkpt
MANAGER RUNNING
EXTRACT RUNNING EXT01 00:00:00 00:20:48
10. Add the checkpoint table in the GoldenGate
GGSCI (localhost.localdomain) 69> dblogin userid gguser@pdb1, password gguser
Successfully logged into database.
GGSCI (localhost.localdomain as gguser@orcl) 70> add checkpointtable gguser.chkpt
Successfully created checkpoint table gguser.chkpt.
11. Create a replicate process of GoldenGate

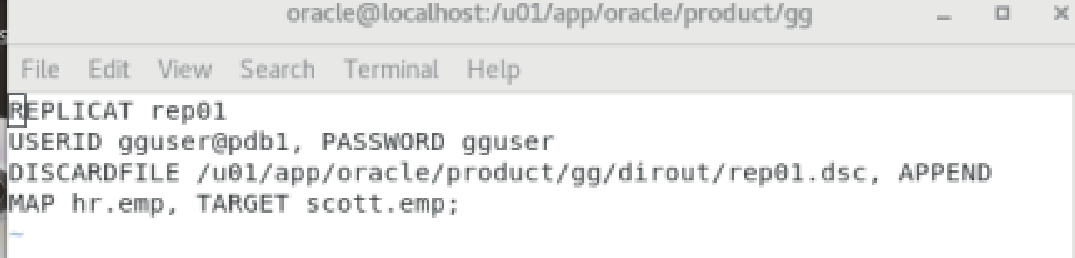

edit param rep01
REPLICAT rep01
USERID gguser@pdb1, PASSWORD gguser
DISCARDFILE /u01/app/oracle/product/gg/dirout/rep01.dsc, APPEND
MAP hr.emp, TARGET scott.emp;
12. Add replicate process
ADD REPLICAT rep01, EXTTRAIL /u01/app/oracle/product/gg/dirdat/et, CHECKPOINTTABLE gguser.chkpt13. Check the status of all process
GGSCI (localhost.localdomain) 15> info all
Program Status Group Lag at Chkpt Time Since Chkpt
MANAGER RUNNING
EXTRACT RUNNING EXT01 00:00:00 21:33:26
REPLICAT RUNNING REP01 00:00:00 00:00:09 14. Verify the operation in database from HR schema to SCOTT Schema data start moving:
SQL> alter session set container=pdb1;
Session altered.
SQL> conn hr@pdb1
Enter password:
Connected.
SQL> select * from emp;
no rows selected
SQL> desc emp;
Name Null? Type
----------------------------------------- -------- ----------------------------
ID NUMBER
NAME VARCHAR2(100)
SALARY NUMBER
SQL> insert into emp values(1, 'RAM',10000)
1 row created.
SQL> select * from scott.emp;
no rows selected
SQL> commit;
Commit complete.
SQL> select * from scott.emp;
ID NAME SALARY
---------- ---------------------------- ------------------------
1 RAM 1000015. Verify from Golden gate at extract process:
GGSCI (localhost.localdomain) 34> stats extract ext01
Sending STATS request to Extract group EXT01 ...
Start of statistics at 2025-07-27 19:51:34.
Output to /u01/app/oracle/product/gg/dirdat/et:
Extracting from HR.EMP to HR.EMP:
*** Total statistics since 2025-07-27 19:51:26 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
*** Daily statistics since 2025-07-27 19:51:26 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
*** Hourly statistics since 2025-07-27 19:51:26 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
*** Latest statistics since 2025-07-27 19:51:26 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
End of statistics.
Verify at replicate process:
GGSCI (localhost.localdomain) 35> stats replicat rep01
Sending STATS request to Replicat group REP01 ...
Start of statistics at 2025-07-27 19:57:54.
Replicating from HR.EMP to PDB1.SCOTT.EMP:
*** Total statistics since 2025-07-27 19:51:57 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
*** Daily statistics since 2025-07-27 19:51:57 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
*** Hourly statistics since 2025-07-27 19:51:57 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
*** Latest statistics since 2025-07-27 19:51:57 ***
Total inserts 1.00
Total updates 0.00
Total deletes 0.00
Total upserts 0.00
Total discards 0.00
Total operations 1.00
End of statistics.
